Sliding Guide Shoes Are Used For Medium and High Speed Passenger Elevators THY-GS-310F

Short Description:

Product Detail

Product Tags

Product Parameters

Rated Speed	≤2.0m/s
Positive Force	1500N
Yawing Force	1250N
Match The Guide Rail	10,16
Applicable to the lateral capsules

Product Information

The THY-GS-310F sliding high-speed guide shoe fixes the car on the guide rail so that the car can only move up and down. The upper part of the guide shoe is equipped with an oil cup to reduce the friction between the shoe lining and the guide rail. Each elevator car is equipped with four sets of guide shoes, which are respectively installed on both sides of the upper beam and under the safety gear seat at the bottom of the car; the guide shoes fixed on the car can reciprocate along the fixed guide rail installed on the wall of the building hoistway Lifting movement prevents the car from skewing or swinging during operation. The use of two-point sliding contact between the upper and lower sliders and rubber shock-proof pads, combined with Mitsubishi one-piece shoe lining, reduces the shaking when the elevator car moves up and down, with good stability and comfortable riding. Mainly used for elevators whose rated speed is below 2.0m/s.

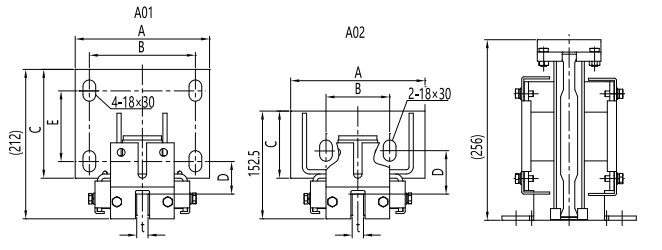

Guide shoe adjustment method

(1) Adjust four screws, that is, adjust the gap X1, take X1=1~2mm.

(2) Tighten the adjusting nut to adjust the gap to an appropriate value. The gap can be determined according to the load. For a load> 1000kg, it can be 2.0~2.5mm; for a load ≤ 1000kg, it can be 4~4.5mm.

(3) After installing the guide shoe, return the adjusting nut by half a turn. After adjustment, tighten the lock nut.

FAQS

What are your company's suppliers?

Torindrive, Monadrive, Montanari, Faxi, Sylg, Xinda, Kds, Xizi, Nbsl, Ouling, Bst, Flying, Hd, Eshine, Fermator, Dongfang, Huning, Aodepu, Wittur, Marazzi, Rlb, Feinai, Weco，gustav, Goldsun, Langshan, Monarch, Step Etc.

What is your company's production process?

Sales plan order release→Elevator civil and technical processing→Production department receives instructions to adjust the plan→Production releases processing list→Packaging instructions→Issue raw and auxiliary materials and packaging materials picking list→Organize production→Production process technology, quality supervision→Production progress tracking→ Apply for inspection→ Inspection → Record Review → Packaging → Finished Product Storage.

How long does your company's normal product lead time take?

The delivery time of the complete elevator is 20 working days, and the cabin is normal 15 working days. We will arrange delivery as soon as possible for other parts according to the specifications, quantity and delivery method of the specific order. For details, please contact us before ordering.
